HQ350V-3.5mm/3.96mm Pcb Screw Terminal Block 2P Electric Brass Cage

Product Categories
CIXI ZHONGYI ELECTRONIC EQUIPMENT FACTORY
Contact Now

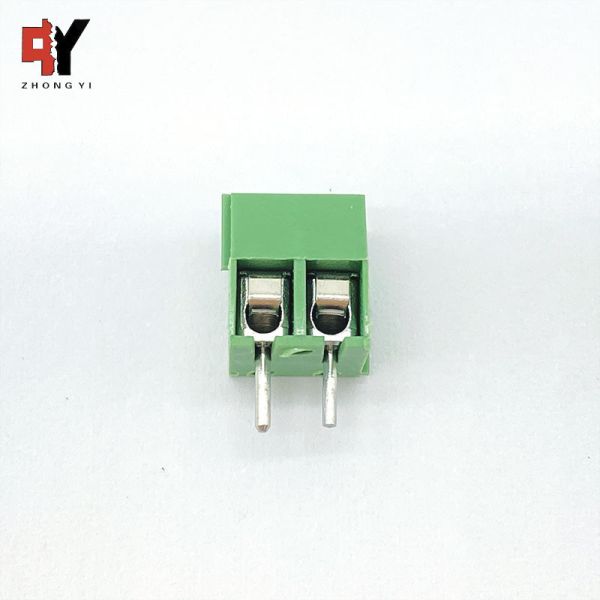

HQ350V-3.5mm/3.96mm Pcb Screw Terminal Block 2P Electric Brass Cage

Brand Name : ZHONGYI

Model Number : HQ350V

Place of Origin : China

MOQ : 100pcs

Price : $0.06 100~499pcs / $0.05 ＞500pcs

Payment Terms : T/T

Supply Ability : 10000pcs/day

Delivery Time : 1-3 work day

Packaging Details : 100pcs/plastic bag

Pitch : 3.5/3.96mm

Type : Screw

Screws : M2.5.Steel.Zinc plated

Wire guard : Phosphor bronze.Ni plated or stainless steel

Pin header : Brass.Tin plated

Housing : PA66.UL94V-0

Rated voltage : 300V

Rated current : 7A

Withstanding voltage : AC1500/1Min

Wire range : 24-18AWG

Temp range : -30℃~+120℃

Strip length : 4.5~5mm

Contact Now

HQ350V-3.5mm/3.96mm 2P electric brass cage pcb mount screw in terminal block wire connector

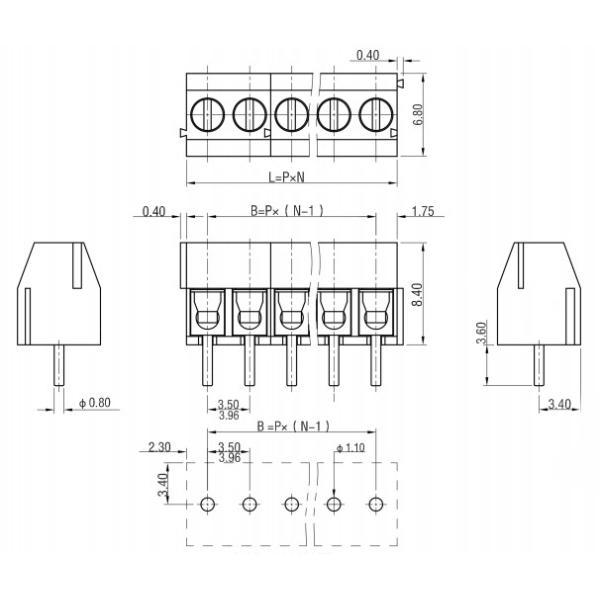

Pitch 3.5/3.96mm
Poles 2P.3P
Rated voltage 300V
Rated current 7A
Withstanding voltage AC1500/1Min
Wire range 24-18AWG
Max.soldering +250℃ 5 Sec
Torque 0.2Nm(1.7Lbin)


HQ350V-3.5mm/3.96mm Pcb Screw Terminal Block 2P Electric Brass Cage

HQ350V-3.5mm/3.96mm Pcb Screw Terminal Block 2P Electric Brass Cage


Product Tags:

350v pcb screw terminal block



3.96mm pcb screw terminal block



3.5mm screw terminal wire connectors

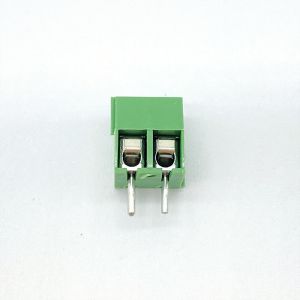

Wholesale HQ350V-3.5mm/3.96mm Pcb Screw Terminal Block 2P Electric Brass Cage from china suppliers
